Product Description

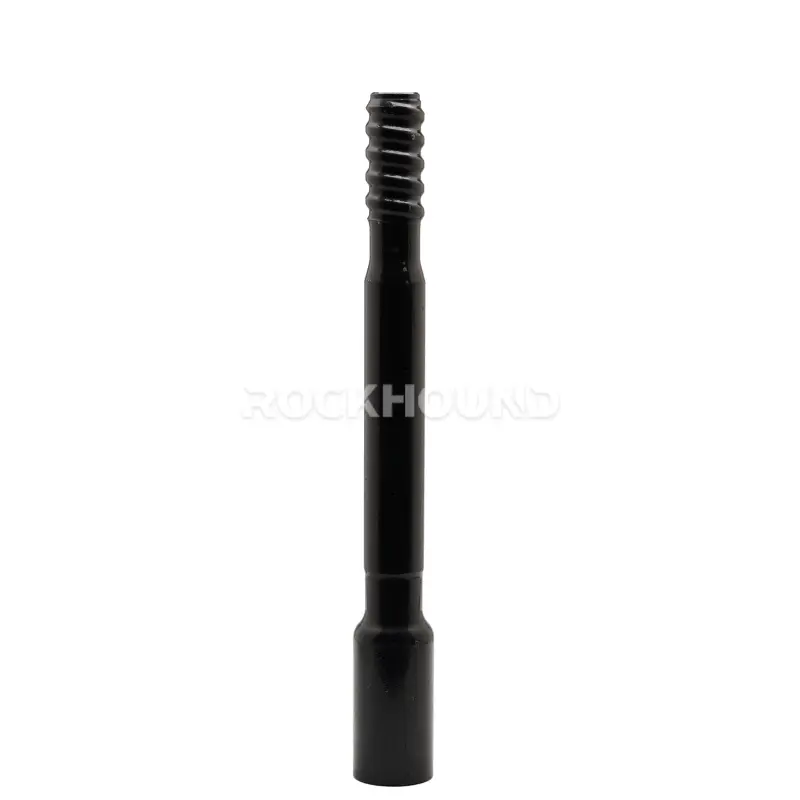

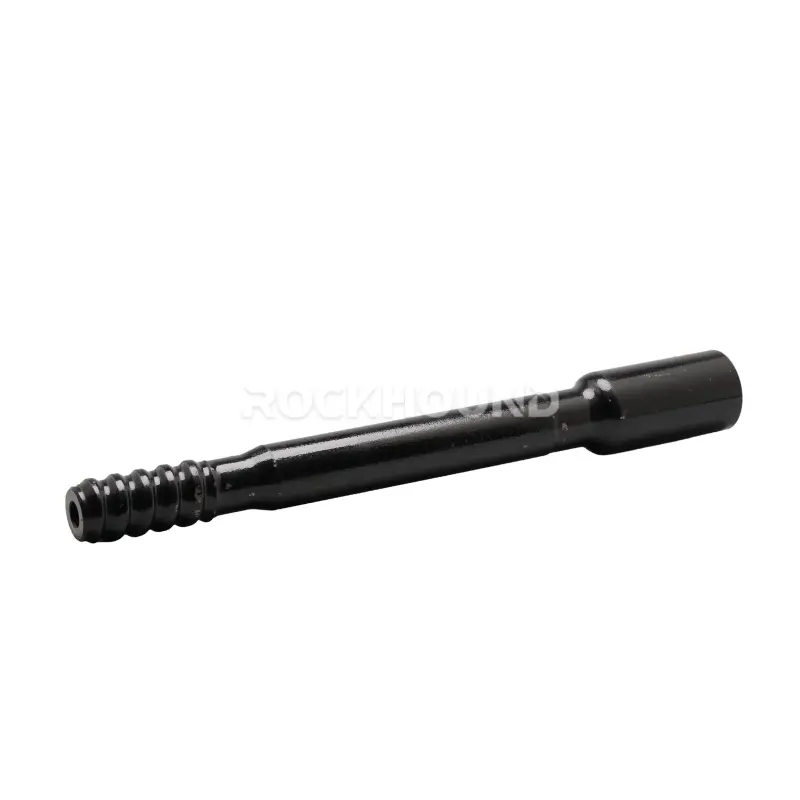

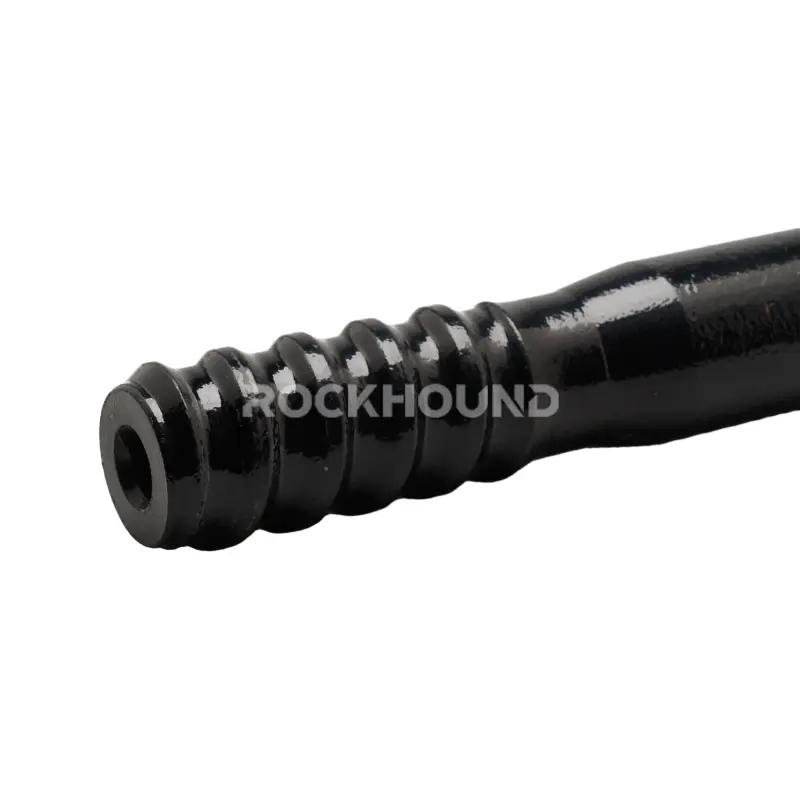

In underground mining, quarrying, and bench drilling operations, Rate of Penetration (ROP) and hole deviation control are the two decisive factors driving cost-efficiency. RockHound’s T51-52mm Speed MF Rod (Male/Female Rod) is purpose-engineered for long-hole drilling, featuring an integrated male-female thread design that eliminates the need for separate coupling sleeves—delivering more direct percussive energy transfer with significantly reduced energy loss at each joint.
The T51 MF Rod connects directly from the shank adapter through to the drill bit, forming a rigid, low-play drill string that consistently outperforms conventional extension rod + coupling sleeve assemblies, especially in deep-hole applications where straightness is non-negotiable.
Crafted from high-tensile ZK22CrNi3Mo (23CrNiMo) alloy steel and subjected to RockHound’s proprietary 20-hour precision heat treatment process, each rod achieves an optimal balance of surface hardness and core toughness—ready to perform under the harshest percussive drilling conditions.
Key Features

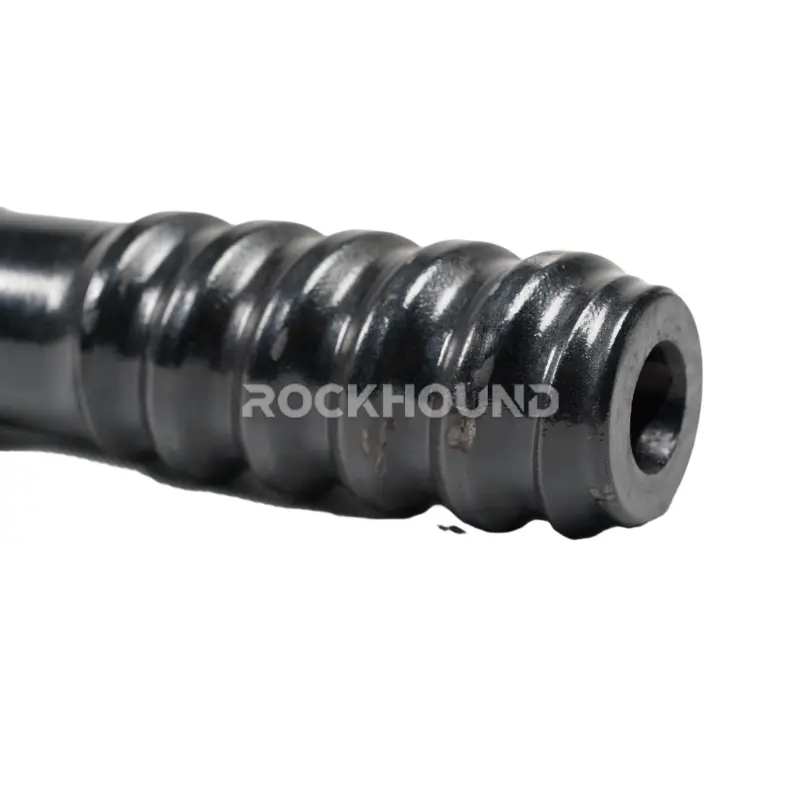

- Integrated MF Design: One-piece male-female rod eliminates one threaded coupling joint per rod length, reducing drill string “play,” improving energy transfer efficiency, and minimizing hole deviation in deep-hole applications.
- Premium ZK22CrNi3Mo (23CrNiMo) Alloy Steel: High Nickel-Chromium-Molybdenum content delivers exceptional fatigue strength under high-frequency percussive impact. See how it compares to other rod steels: Rock Drill Rod Material Comparison: 23CrNiMo vs Sanbar64.
- 20-Hour Precision Heat Treatment: Every rod undergoes a rigorous 20-hour specialized heat treatment cycle, producing a case-hardened wear surface with a ductile, shock-absorbing core—extending service life in abrasive formations.

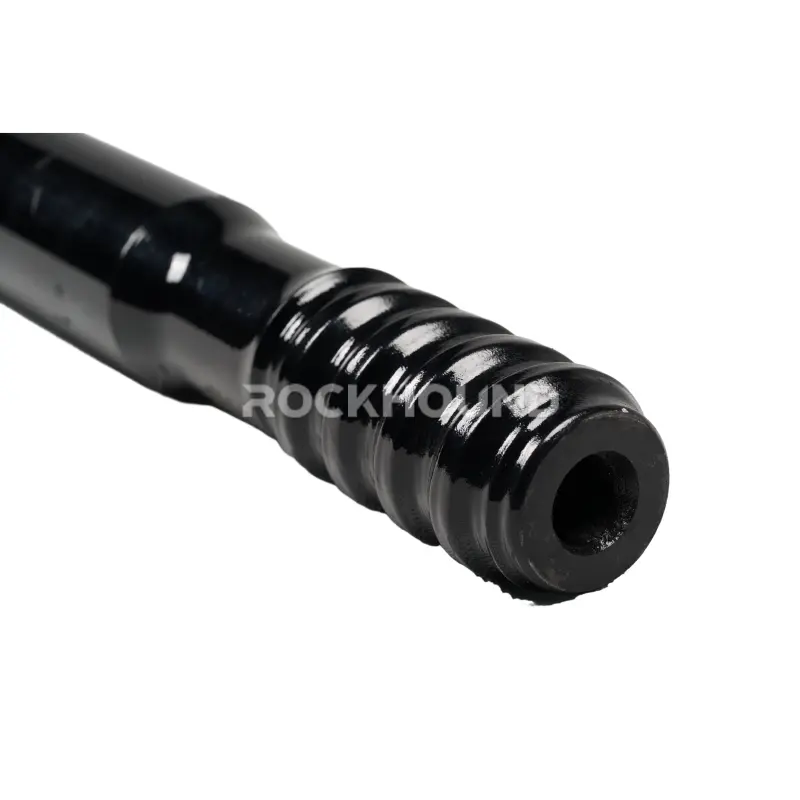

- CNC-Machined T51 Threads: Threads are machined to tight international tolerances, ensuring consistent engagement, preventing thread galling, and maximizing connection integrity. Learn more: The Processing of Thread Rock Drilling Rods.
- Optimized for T51 (2″) Long-Hole Systems: Fully compatible with the complete T51 equipment lineup, including shank adapters, guide tubes, ballistic button bits, button bits, and retrac bits, as shown in RockHound’s T51 system diagram.
- Dual Flushing Holes: Engineered with 2 flushing channels to ensure efficient cuttings evacuation and bit cooling throughout the drill string.
T51 Equipment Drilling System
- T51 Threaded Button Bit
- T51 Retrac Button Bit
- T51 Extension Round Rod
- T51 Speed MF Drill Rod
- T51 Guide Rod
- Coupling Sleeve
- Shank Adapter
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | T51-Round 52-T51 MF Rod |
| Overall Length (L) | 1,830 mm |
| Rod Diameter (D) | 52 mm |
| Thread Type | T51 (Male × Female) |
| Flushing Holes | 2 |
| Part Number | 290-5218-7878 |
| Weight | 26.8 kg |
| Raw Material | ZK22CrNi3Mo (23CrNiMo) Alloy Steel |
| Heat Treatment | 20-Hour Proprietary Process |
| Surface Hardness | Case-Hardened (HRC, per RockHound lab standards) |
Custom lengths and thread configurations available upon request. Contact RockHound for bulk OEM specifications.
Applications
The T51 Speed MF Rod is the industry standard for demanding long-hole drilling scenarios:
- Underground Long-Hole Mining: Maintains superior hole straightness across a range of rock hardness levels (f = 8–16), critical for blasthole pattern accuracy in stope mining and sublevel caving operations.
- Bench Drilling (Open-Pit & Quarrying): Enhances operational throughput and reduces drill string handling time in production blasting.
- Drifting & Tunneling: Functions as the primary percussive energy transmission component in development heading rigs, where drill string rigidity directly impacts advance rate.
- Raise Boring & Long-Hole Stoping: Ideal where extended reach and minimal deviation are required across multiple rod lengths.

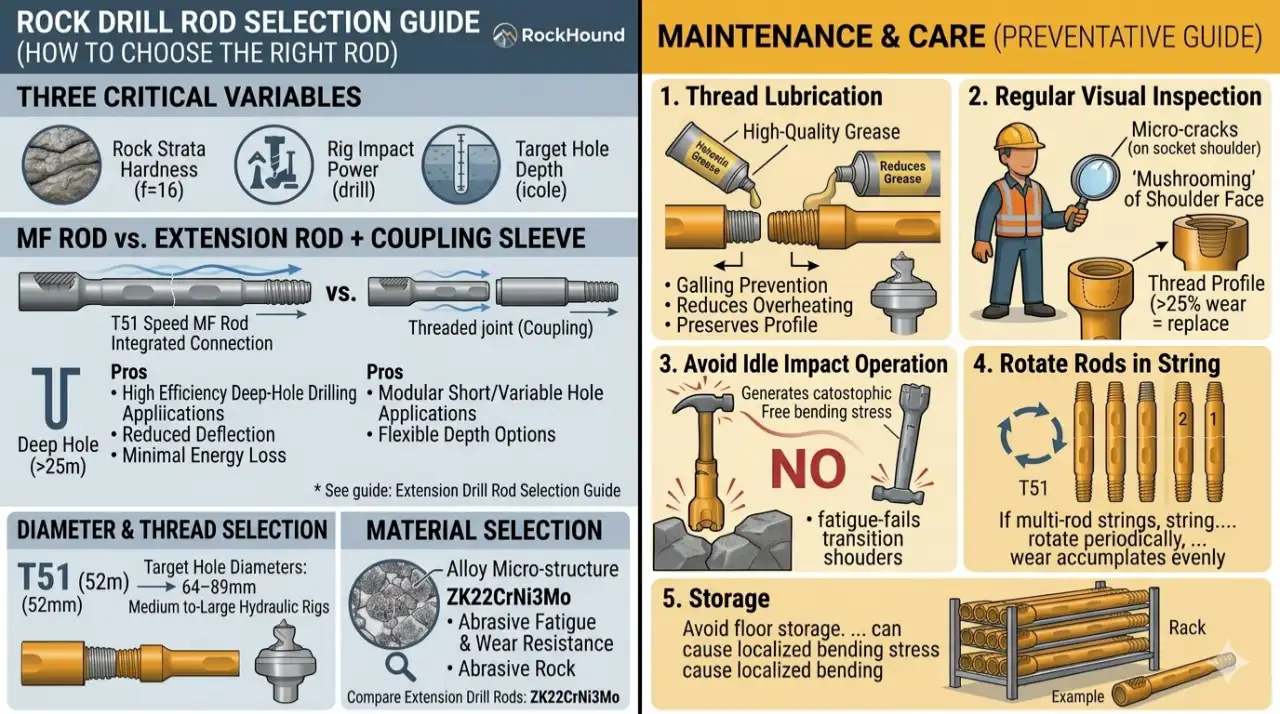

How to Choose the Right Rod
Selecting the correct drill rod depends on three critical variables: rock strata hardness, rig impact power, and target hole depth.
MF Rod vs. Extension Rod + Coupling Sleeve: MF Rods are preferred for high-efficiency deep-hole drilling because each integrated connection eliminates one joint, reducing deflection and energy loss. Extension Rods with coupling sleeves offer more modularity in short-hole or variable-depth applications. For a detailed breakdown, refer to our guide: Extension Drill Rod: Types, Materials & Selection Guide.
Diameter & Thread Selection: The T51 (52mm) is optimized for medium-to-large hydraulic top-hammer rigs targeting hole diameters of 64–89mm. For smaller rigs or tighter blastholes, consider our T38 or T45 range.
Material Selection: For extremely abrasive formations (quartzite, granite, hard gneiss), ZK22CrNi3Mo is the recommended choice due to its superior fatigue and wear resistance profile. Compare material performance here: 23CrNiMo vs Sanbar64.
Maintenance & Care
Proper maintenance directly extends rod service life and protects your drilling investment:
- Thread Lubrication: Always apply high-quality rock drill thread grease to both male and female connections before coupling. This prevents galling, reduces overheating at joints, and preserves thread profile geometry.

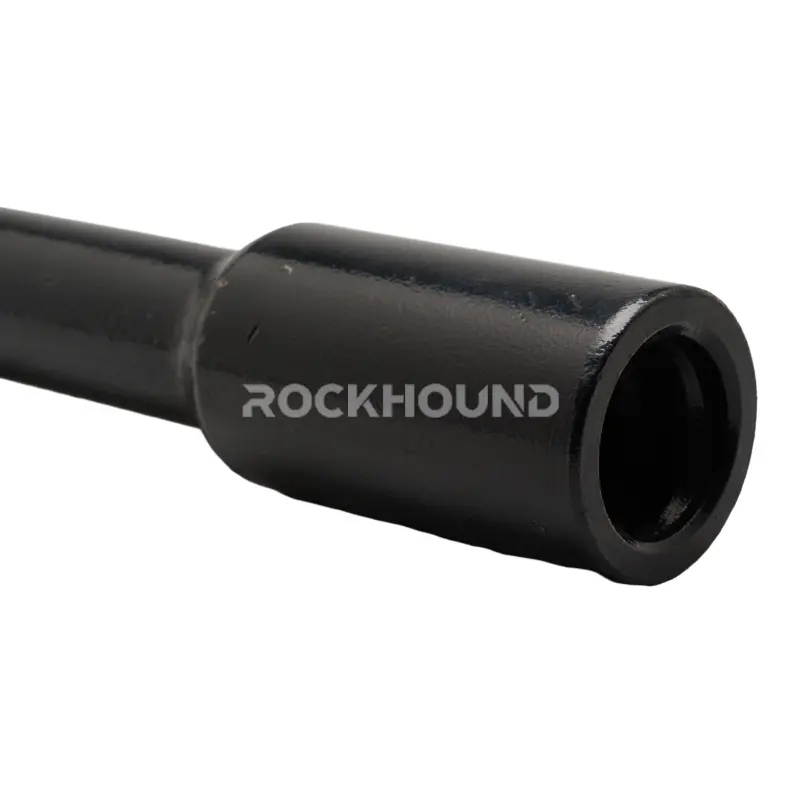

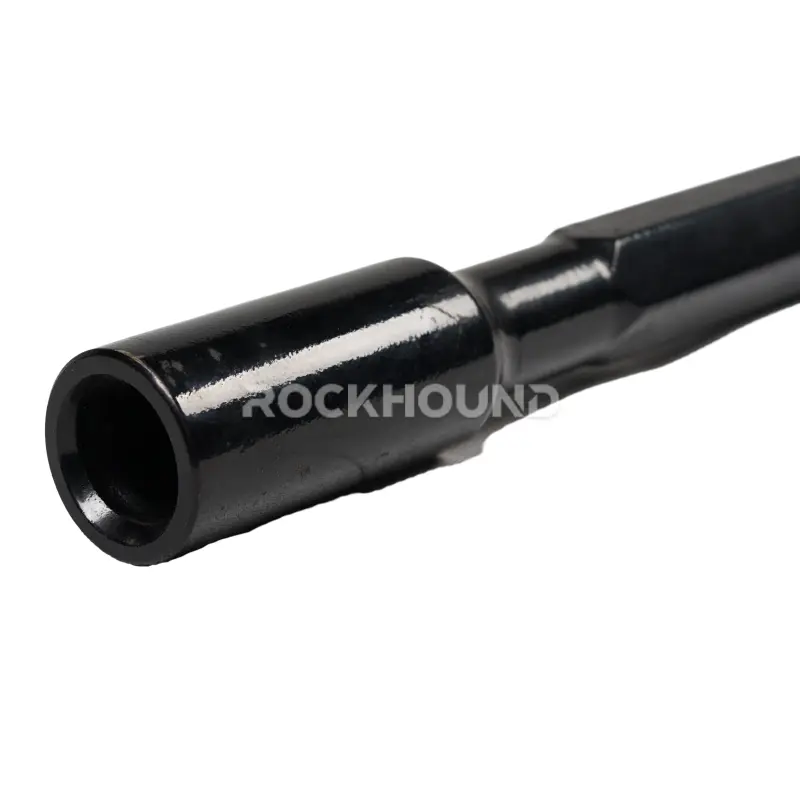

- Regular Visual Inspection: After each shift, inspect the female socket (box end) for micro-cracks, “mushrooming” of the shoulder face, or thread profile sharpening (>25% wear indicates replacement is due).
- Avoid Idle Impact Operation: Never run the rock drill at full percussive power when the bit is not in firm contact with the rock face. Idle impacting generates catastrophic bending stress in the rod body and rapidly fatigue-fails the transition shoulders.
- Rotate Rods in String: If running multi-rod strings, rotate rod positions periodically so that wear accumulates evenly across the string rather than concentrating at the lead rod.
- Storage: Store rods horizontally on purpose-built racks. Avoid floor storage that can cause localized bending stress over time.
Packaging & Labeling
All RockHound rock drilling tools are packaged to industrial export standards, ensuring product integrity from point of manufacture to job site delivery.
Drill rods are individually labeled with product code, shank specification, length, taper angle, and steel grade, then bundled and secured within a heavy-duty wooden export crate. Each crate is stenciled with the RockHound company logo on the exterior panel for clear brand identification and shipment traceability.
Related Production
FAQ
MF Rods eliminate one threaded joint per connection. Fewer joints mean less drill string "play," better percussive energy transfer to the bit face, and significantly reduced hole deviation—particularly important when drilling holes deeper than 20 meters.
This alloy's high Nickel, Chromium, and Molybdenum content responds exceptionally well to case-hardening heat treatment. The result is a hard, wear-resistant outer layer protecting against abrasion, while the inner core remains ductile enough to absorb tens of thousands of percussive stress cycles without brittle fracture.
Yes. While 1,830mm is our standard catalog length, RockHound manufactures custom rod lengths across our full range—R32, T38, T45, T51, and GT60 thread systems. Contact us directly with your rig specifications.
Replace the rod when:
- thread profiles have worn to a sharp "knife-edge" appearance, indicating approximately 25% profile loss;
- visible micro-cracks appear at the rod body-to-shank transition shoulder;
- The female socket shows measurable "bell-mouthing." Proactive retirement prevents expensive "fish-in-hole" retrieval operations and unplanned downtime.
Yes. RockHound T51 MF Rods are manufactured to international T51 thread standards and are compatible with major OEM rig platforms. The complete T51 system—shank adapter, MF rods, guide tube, and button/retrac/ballistic bits—is available from RockHound as a matched set.
