Description

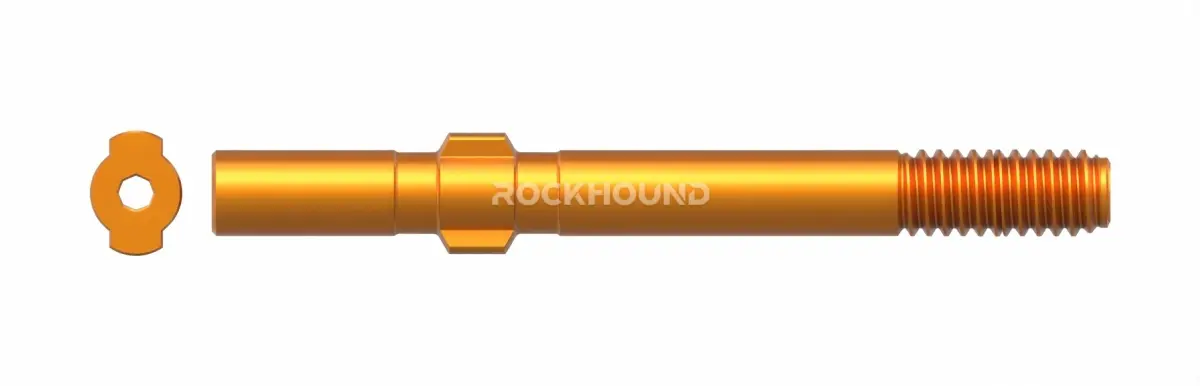

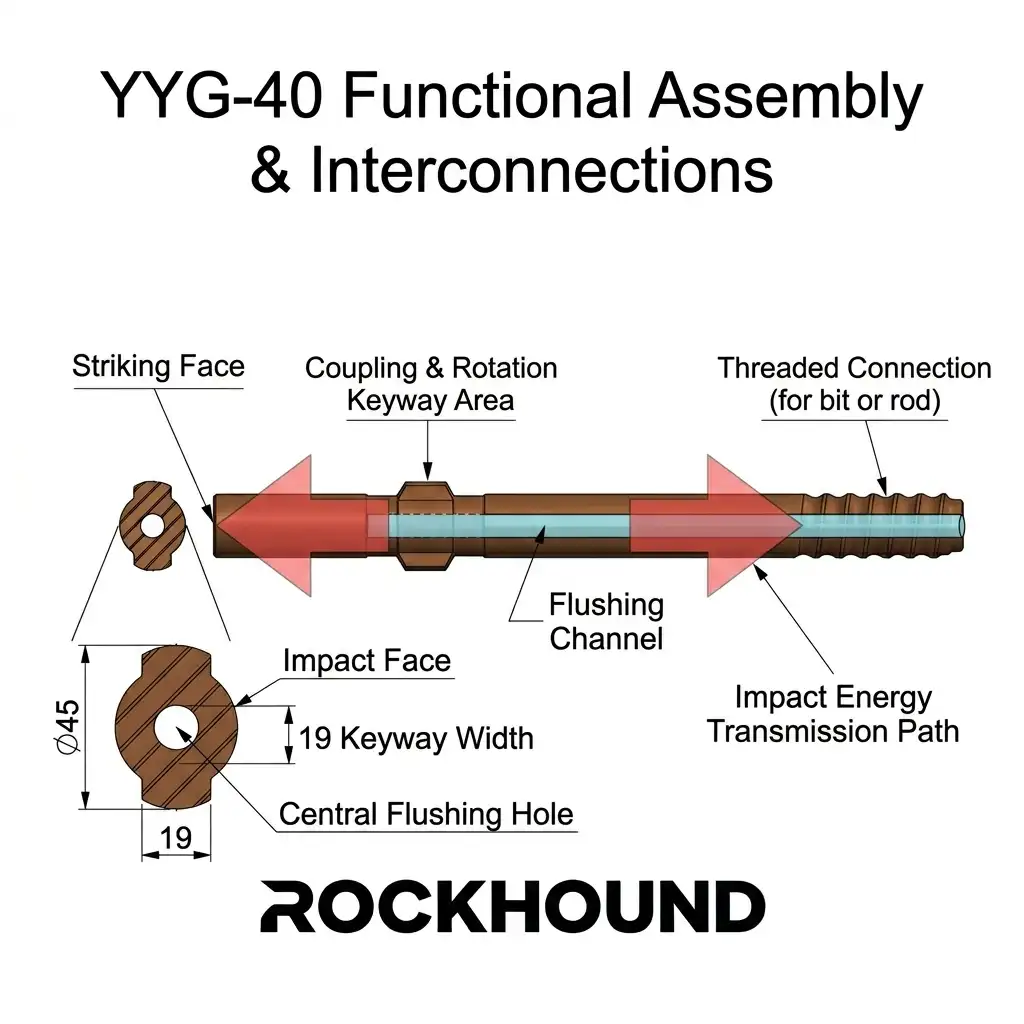

The YYG40 Shank Adapter — also referred to in field terminology as a striking bar or shank rod — is the primary mechanical interface between the pneumatic rock drill and the drill string. It receives direct piston impact, transmits percussive energy down the rod column to the drill bit, and simultaneously transfers rotational torque from the drill’s chuck bushing.
Because the shank adapter occupies the highest-stress position in the entire drilling system, its dimensional precision and metallurgical integrity determine the service life of every component downstream — including the coupling sleeve, drill rod, and drill bit. RockHound’s YYG40 adapters are manufactured to tight tolerances that ensure concentric alignment with the drill’s front bushing, eliminating off-axis loading that accelerates internal drill wear.
Material
23CrNiMo Alloy Steel — Why It Matters
Every RockHound YYG40 shank adapter is manufactured from 23CrNiMo (chromium-nickel-molybdenum) alloy steel — the same high-fatigue-grade material specified by major OEM drifter manufacturers for percussive drilling consumables.
The composition delivers a critical dual-phase property that lower-grade steels cannot replicate: a hard, wear-resistant carburized surface layer combined with a tough, impact-absorbing core. In pneumatic drilling, where a piston strikes the shank face at frequencies exceeding 2,000 blows per minute, this combination directly prevents two of the most common failure modes — surface spalling on the striking face and subsurface fatigue cracking at the thread root.
For a full metallurgical comparison, see: Rock Drill Rod Material: 23CrNiMo vs Sanbar64
Features & Function
1. Premium 23CrNiMo Alloy Steel Billet
Sourced from certified steel mills and verified by incoming material inspection. Each billet is checked for chemical composition before entering production. This eliminates the inconsistency found in lower-cost substitutes that use undefined or recycled alloy mixes.
2. 20-Hour Carburizing Heat Treatment
All RockHound shank adapters undergo a full 20-hour heat treatment cycle in a controlled atmosphere furnace. The extended carburizing duration ensures a carburized case depth of ≥1.0 mm, achieving a surface hardness of HRC 58–62 while maintaining a core hardness of HRC 35–42. This dual-hardness profile is critical for resisting striking face mushrooming and thread galling under sustained percussive load.
3. CNC-Machined Thread Profile
The R32 rope thread is finish-machined on CNC lathes after heat treatment to ensure pitch accuracy and thread flank geometry meet OEM specification. Precise thread geometry reduces make-and-break torque, prolongs coupling sleeve life, and prevents cross-threading under field conditions. Full details on our Shank Adapter Production Process are available on the RockHound blog.
4. Optimized Striking Face Geometry
The hexagonal (hex) drive shank profile is precision-ground to fit YYG40-class drill chucks with minimal rotational play. Tight hex-to-chuck fit reduces secondary bending moments at the shank collar, directly extending front bushing life in the drill body.
5. Consistent Energy Transmission
The adapter’s rod-body cross-section and collar geometry are designed to minimize impedance mismatch between the piston and the drill rod. Maximum percussive energy transfer means faster penetration rates and lower specific energy consumption per meter drilled.

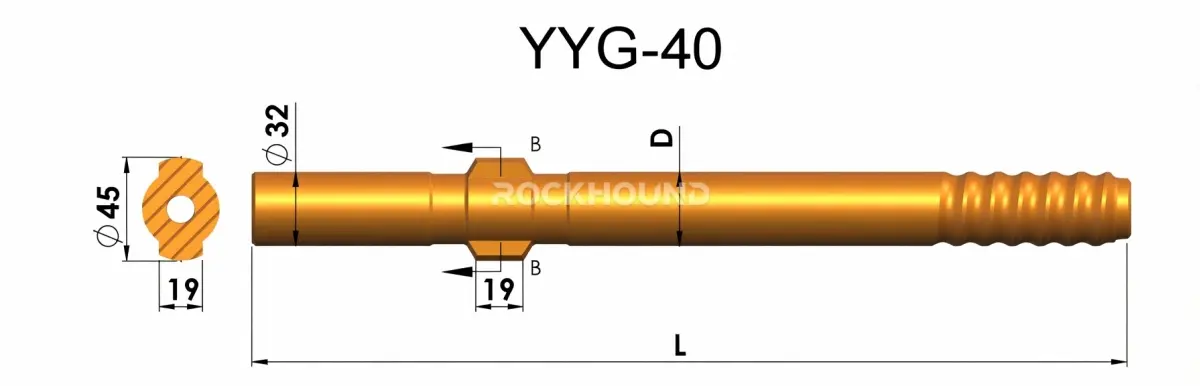

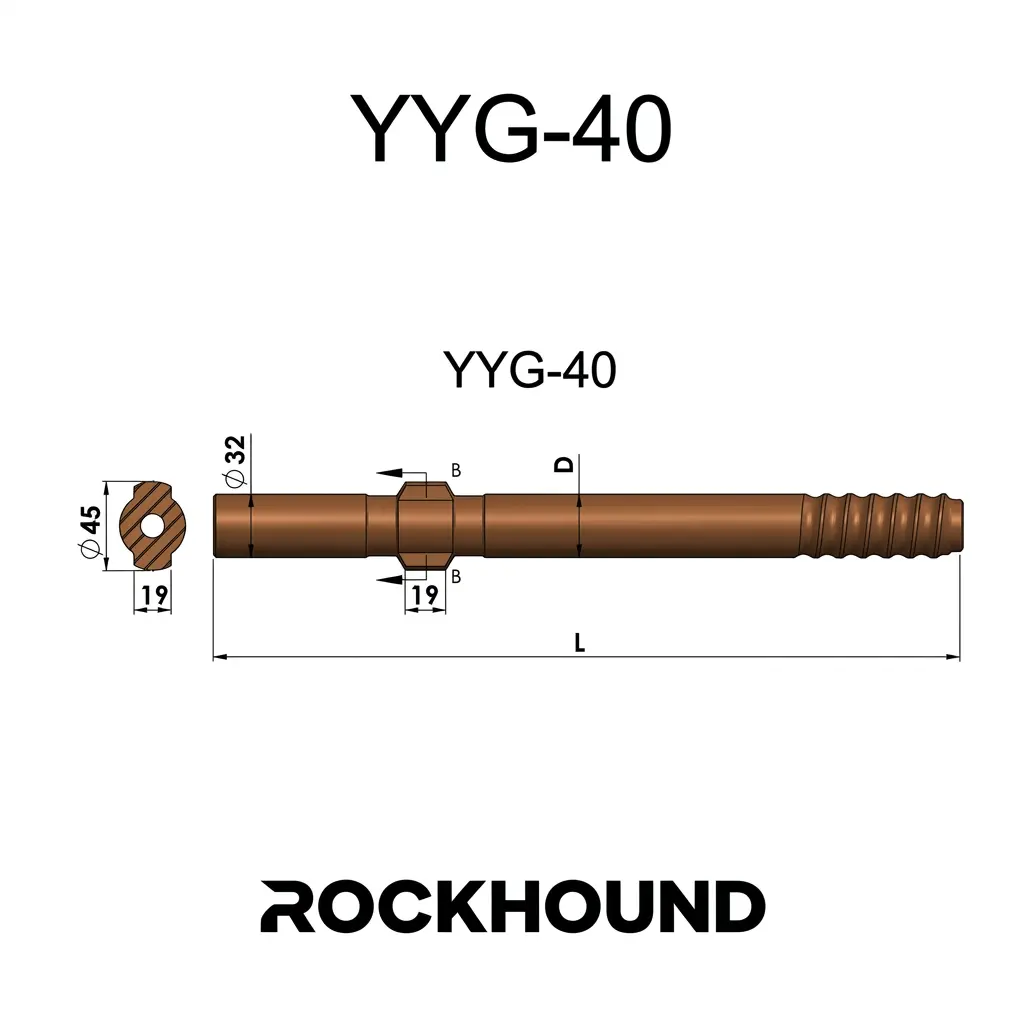

Specification
| Model | Length (L) | Diameter (D) | Thread | Product Code | Weight |
|---|---|---|---|---|---|
| YYG-40 | 320 mm | 32 mm | R32 | 402-3232-5164 | 1.8 kg |
| YYG-40 | 350 mm | 32 mm | R32 | 402-3235-5164 | 1.9 kg |
| YYG-40 | 380 mm | 32 mm | R32 | 402-3238-5164 | 2.3 kg |
- Shank Profile: YYG-40 hex (45 mm hex across flats, 19 mm drive length)
- Rod Body Diameter: Ø32 mm
- Thread Standard: R32 (Rope Thread, right-hand)
- Material: 23CrNiMo alloy steel
- Surface Treatment: Gas carburizing + quenching + low-temperature tempering
- Surface Hardness: HRC 58–62
- Core Hardness: HRC 35–42
Note: Dimensional drawings available on request for OEM qualification.

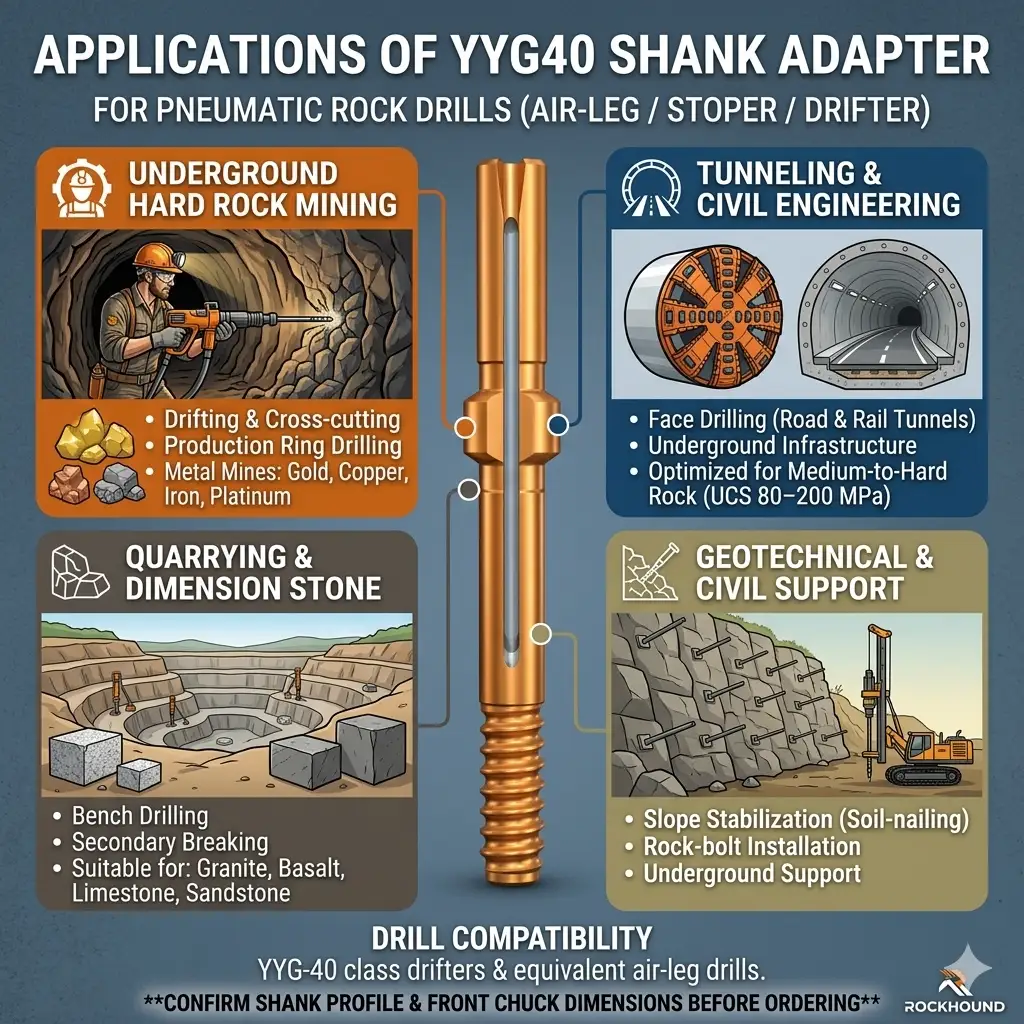

Applications
The YYG40 shank adapter is designed for pneumatic rotary guide rail rock drills operating in the following environments:
- Underground Hard Rock Mining — Development drifting, cross-cutting, and production ring drilling in metal mines (gold, copper, iron ore, platinum)
- Tunneling & Civil Engineering — Face drilling for road tunnels, rail tunnels, and underground infrastructure in medium-to-hard rock (UCS 80–200 MPa)
- Quarrying & Dimension Stone — Bench drilling and secondary breaking in granite, basalt, limestone, and sandstone formations
- Geotechnical Drilling — Soil-nailing and rock-bolt installation in slope stabilization and underground support applications
Compatible pneumatic drill models (non-exhaustive): YYG-40 class drifters and equivalent pattern air-leg drills from leading manufacturers. Confirm shank profile and front chuck dimensions before ordering.
How to Choose & Select
Selecting the correct YYG40 shank adapter requires matching three parameters to your specific drill and rig configuration:
Step 1 — Confirm the Shank Profile Verify that your drill’s chuck accepts a YYG-40 hex shank (Ø45 mm hex, 19 mm drive). Installing an incorrect profile causes immediate chuck bushing damage and piston misalignment.
Step 2 — Match the Thread Type All RockHound YYG40 adapters are supplied with R32 (Rope Thread). Confirm your coupling sleeve and drill rod are also R32. Mixing thread standards (e.g., T38, T45) results in cross-threading and catastrophic rod ejection risk.
Step 3 — Select the Correct Length Choose the adapter length (320 / 350 / 380 mm) based on your drill-to-rod clearance requirement. The longer the adapter, the greater the machine clearance in tight headings — but note that excess unsupported length increases bending stress at the collar. Match to the manufacturer’s recommended specification for your drill model.
Step 4 — Consider Formation Hardness In extremely hard, abrasive formations (UCS > 180 MPa), consult with RockHound on heat treatment specifications, as extended carburizing depth options may be available for extended-duty applications.
For a complete guide to adapter selection, compatibility, and sizing logic, refer to: Shank Adapter: Function, Work, Choose & Maintenance
How to Maintain
Proper maintenance of the shank adapter is the single most cost-effective measure for protecting your pneumatic drill investment. A worn or damaged adapter transfers abnormal shock loads directly to the drill’s piston and front bushing.
1. Thread Lubrication (Every Shift) Apply a certified high-pressure thread grease (e.g., Sandvik Rock Tools Thread Grease or equivalent) to the R32 thread before each collaring. Dry-running threads gall within 20–30 make-and-break cycles, stripping flanks and causing in-hole uncoupling.
2. Striking Face Inspection (Daily) Visually inspect the shank hex face for mushrooming (radial deformation of the striking face edge) after each operating shift. Mushroomed material spalls into the chuck, damaging the front bushing and piston crown. Dress minor mushrooming with a file; replace the adapter if deformation exceeds 2 mm radially.
3. Thread Wear Gauge Check (Weekly) Use a Go/No-Go thread gauge on the R32 thread. Replace the adapter when flanks show >50% wear depth, visible chipping, or plastic deformation on thread crests.
4. Alignment Verification Ensure the drill, shank adapter, coupling sleeve, and rod are collinearly aligned before drilling. Off-axis angles as small as 2° generate bending moments at the shank collar that accelerate fatigue cracking, particularly at the thread run-out.
5. Rotation Check Inspect the hex drive flanks for rotational wear (rounding of corners). Excessive rotational play in the chuck accelerates both hex and chuck bushing wear simultaneously.
For a detailed breakdown of adapter anatomy and failure mode identification, see: What is Shank Adapter Structure and Function
OEM & Custom Branding (Logo Marking)
RockHound supports wholesale distributors, mining contractors, and OEM partners with custom branding services on all YYG40 shank adapters:
- Marking Methods: Laser engraving or die stamping
- Maximum Logo Size: 100 × 100 mm
- Minimum Order Quantity: Contact our sales team for MOQ by SKU
- Lead Time: Standard production lead times apply; branding adds no significant delay to schedule
Custom branding is available across all three length variants. Artwork files accepted in AI, EPS, or PDF vector format.
FAQ
The YYG40 shank adapter is the mechanical coupling component between a YYG40-class pneumatic rock drill and the drill rod string.It transmits both the percussive impact energy from the drill's piston and the rotational torque from the chuck to the drill rod and bit. It is a consumable item that must be periodically replaced due to thread wear and striking face fatigue.
23CrNiMo alloy steel provides a combination of surface hardness and core toughness that standard carbon or low-alloy steels cannot achieve. Carbon steels either harden uniformly (becoming brittle under impact) or remain too soft to resist thread galling. The chromium, nickel, and molybdenum additions in 23CrNiMo allow the steel to develop a hard carburized case depth exceeding 1.0 mm while retaining a tough, fatigue-resistant core — a prerequisite for survival under the 2,000+ blow-per-minute impact cycles of pneumatic drilling.
R32 (also designated as "Rope Thread 32 mm") is a standardized coarse-pitch thread profile defined in international drilling standards. It is widely used in light-to-medium drifting applications with drill rod diameters of 32 mm. R32 is compatible with coupling sleeves and drill rods from all major manufacturers (Sandvik, Atlas Copco/Epiroc, Furukawa, and equivalent pattern brands) that specify R32. It is not interchangeable with T38, T45, T51, or R25 thread systems — confirm thread designation before ordering.
Replace the YYG40 shank adapter immediately if any of the following conditions are observed:
- R32 thread flank wear exceeds 50% of original depth on Go/No-Go gauge inspection;
- The striking face shows pitting, cracking, or mushrooming that cannot be dressed flat;
- Hex drive corners are visibly rounded, causing rotational play in the chuck;
- Any cracks are visible on the shank collar or thread root.Do not attempt to weld-repair or re-thread a worn adapter — failure of a reconditioned adapter under load creates serious safety risk.
Yes. RockHound provides laser engraving and die stamping for distributor and contractor branding on all YYG40 shank adapter variants. Maximum logo size is 100 × 100 mm. Contact our sales team with your artwork file and target SKUs for a custom quotation.
