Description
The Furukawa HD612 shank adapter is a mid-class hydraulic drifter used heavily in bench blasting, tunnel development, and underground drift rounds. Its sits between the drifter piston and the T45 drill rod string. It absorbs every single impact cycle the machine delivers. That part fails early, productivity stalls.
RockHound’s HD612-T45 shank adapter is a direct-fit OEM replacement. Same geometry, same T45 thread form, same spline engagement profile as the factory part — but manufactured from 23CrNiMo alloy steel with a 20-hour deep carburizing heat treatment that pushes case hardness to HRC 58–62 while keeping the core tough enough to absorb shock without cracking.
Material
Steel grade: 23CrNiMo — a chromium-nickel-molybdenum alloy that combines high surface hardness with a resilient core. Compared to the Sanbar 64 steel used by some European OEMs, 23CrNiMo delivers near-equivalent fatigue resistance at significantly lower material cost, making it the preferred choice for high-volume replacement tooling. See our full breakdown: 23CrNiMo vs Sanbar 64 Material Comparison.
Two length variants cover the full HD612 application range. Both are available with custom logo marking up to 100×100 mm.
Features
- Direct T45 thread compatibility — standard T45 male thread, zero-rework fit on HD612 drill string
- 23CrNiMo alloy steel — tensile strength ≥1100 MPa, core hardness HRC 35–42, case hardness HRC 58–62
- 20-hour deep carburization — case depth 1.8–2.2 mm; see heat treatment process details
- CNC precision machining — spline groove tolerance ±0.05 mm; thread pitch error < 0.02 mm
- Full production process traceability — each batch documented from billet to final inspection
- Custom branding — laser or stamp marking, max logo area 100×100 mm
Specifications
| Parameter | HD612-T45-715 | HD612-T45-884 |
|---|---|---|
| OEM Part No. | 438-5171-5177 | 438-5188-5177 |
| Total Length (L) | 715 mm | 884 mm |
| Body Diameter (D) | 50.8 mm | 50.8 mm |
| Shank End Dia. | Ø41.5 mm | Ø41.5 mm |
| Bit End Dia. | Ø64.9 mm | Ø64.9 mm |
| Spline Length | 89 mm | 89 mm |
| Thread Type | T45 | T45 |
| Weight | 8.3 kg | 9.6 kg |
| Material | 23CrNiMo | 23CrNiMo |
| Flushing | Internal / External | Internal / External |
OEM & Competitor Cross-Reference
RockHound HD612-T45 shank adapters are 100% interchangeable with the following OEM and aftermarket equivalents:
| Brand | Model / Part No. | Thread | Length |
|---|---|---|---|
| Furukawa (OEM) | 438-5171-5177 | T45 | 715 mm |
| Furukawa (OEM) | 438-5188-5177 | T45 | 884 mm |
| ProDrill | HD612-T45-710 | T45 | ~710 mm |
| Minetech | HD612-T45 series | T45 | 715 / 884 mm |
OEM pricing typically runs 2.5–3× the RockHound equivalent. Same spec. Lower cost. Guaranteed fit.

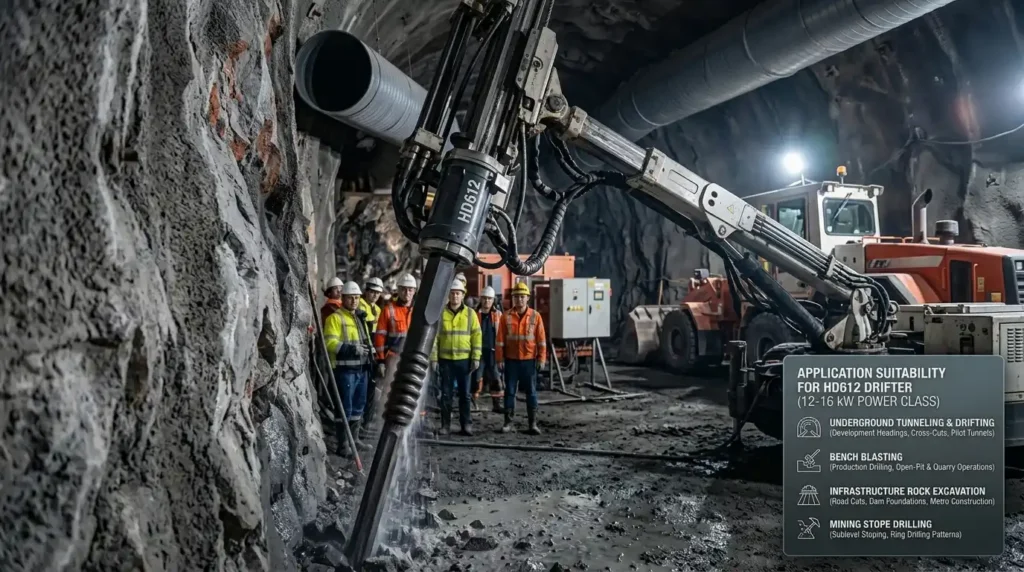

Applications
The HD612 drifter operates in the 12–16 kW impact power class. This shank adapter suits:
- Underground tunneling & drifting — development headings, cross-cuts, pilot tunnels
- Bench blasting — production drilling in open-pit and quarry operations
- Infrastructure rock excavation — road cuts, dam foundations, metro construction
- Mining stope drilling — sublevel stoping, ring drilling patterns
Bit diameter range for T45-threaded drill strings typically covers 51–76 mm. See shank adapter structure and function for full system context.

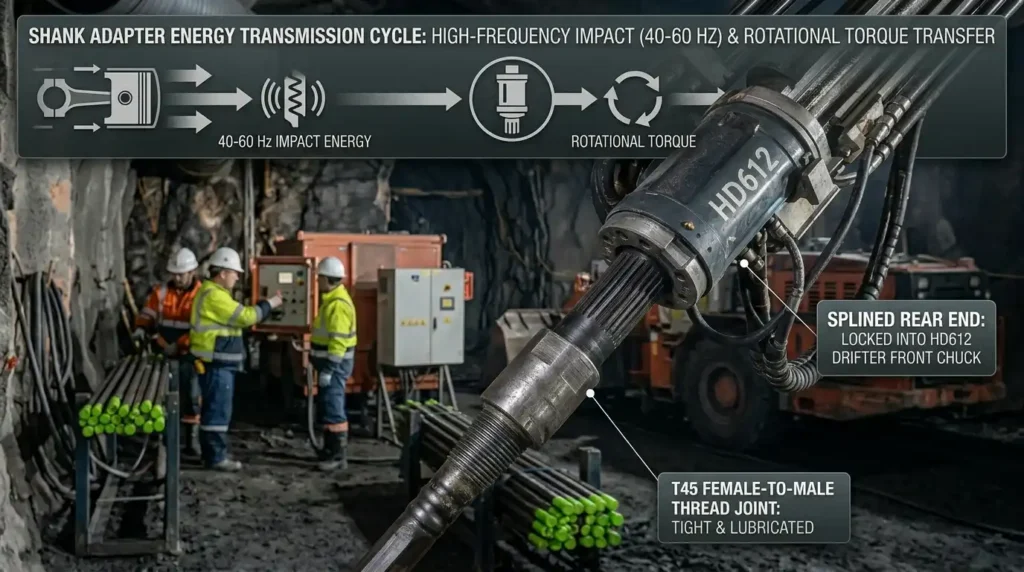

How It Works
The shank adapter transmits high-frequency piston impact energy and rotational torque from the HD612 drifter into the T45 drill rod string. Its splined rear end locks into the front chuck of the drifter. Each piston typically 40–60 Hz at 10–14 MPa hydraulic pressure. It passes as a stress wave through the shank body and into the drill rod. The T45 female-to-male thread joint at the rod end maintains string tension under rotation.
Poor energy transmission usually caused by worn splines or loose thread engagement, which reduces penetration rate and increases shank fatigue life consumption.
How To Select the Right Length
- 715 mm (438-5171-5177): Use when rig feed length and drill mast geometry allow a shorter strike distance. Common in tunneling rigs with restricted clearance.
- 884 mm (438-5188-5177): Preferred for bench drilling rigs with longer feed strokes. The extra length reduces rod coupling frequency on short holes.
Match shank length to your rig’s feed extension range. Confirm with your rig manual or contact RockHound with your HD612 rig model number for a direct recommendation.
Maintenance Guide
- Before each shift: Inspect spline grooves for plastic deformation. Replace if groove flanks show >0.3 mm wear.
- Thread inspection: Check T45 thread flanks for pitting or galling after every 500 drill-meters. Apply anti-seize grease at each connection.
- Flushing passage: Clear water ports daily. Blocked flushing accelerates button bit wear and increases shank heat load.
- Impact fatigue: Retire the shank at the first visible circumferential crack, regardless of remaining thread profile. Cracks propagate fast under cyclic impact.
- Storage: Coat threads with rust preventive oil. Store vertically or horizontal on a padded rack.
Full guidance: Shank Adapter: Function, Work, Choose & Maintenance.
RockHound is a B2B independent rock drilling tools brand. All products are manufactured to OEM specifications and available at 40–60% of OEM list price. Custom logo marking (up to 100×100 mm) available on all shank adapters. → Request a Quote
FAQ
Yes. The RockHound HD612-T45-715 is dimensionally identical to Furukawa OEM 438-5171-5177 and fits without modification.
Note: The 884 mm variant matches Furukawa OEM part 438-5188-5177.
No. The HD612 features a unique spline profile and front-head bore that will not fit other drifters. HD712 and HD709 require distinct shank geometries.
Action: Contact RockHound directly—we stock dedicated adapters for both models.
It supports both internal and external flushing.
Internal: Utilizes a central water tube system.
External: Features precision-machined flushing ports on the shank body.
Ordering Tip: Please specify your drill rig's flushing configuration when placing an order.
Expect 2,000–4,000 drilling meters under normal operating conditions.
Pro Tip: Lifespan depends heavily on consistent lubrication and proper flushing. Highly abrasive rock or excessive percussion pressures will accelerate wear.
